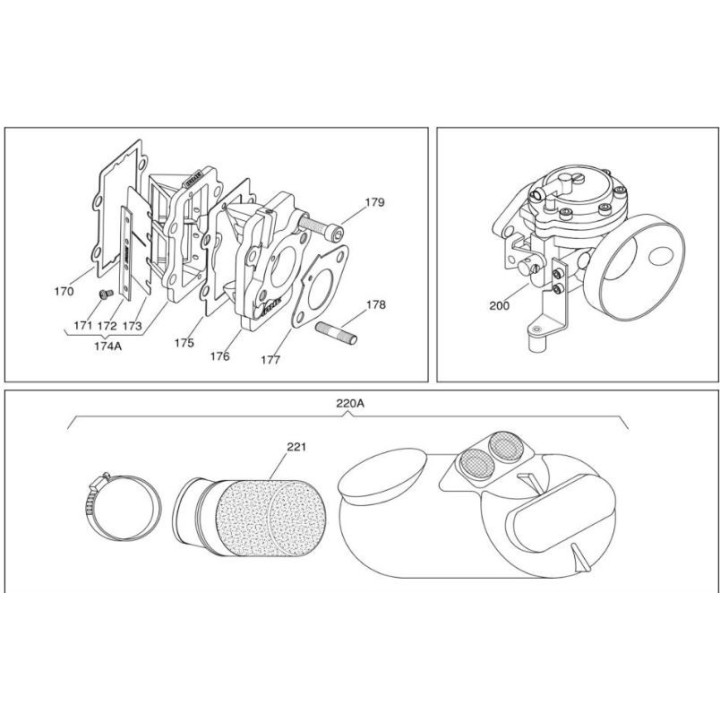

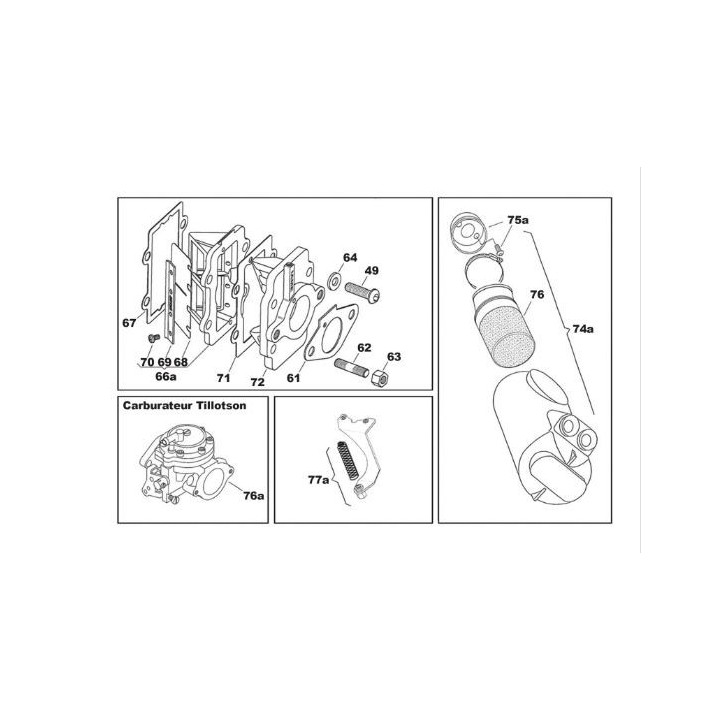

Carburetor seal 29 mm - Iame X30 / KA100 AP.2018 (177) (61)

The Carburettor gasket 29 mm is specifically designed for post-2018 engine developments. It is placed between the carburetor body (usually the Tillotson HW-27A) and the admission flange. Its internal diameter of 29 mm is perfectly calibrated for not obstructing the passage of the gases and avoid any turbulence, thus guaranteeing a flow of laminar air and an instant engine response.

Why choose this specific seal?

High precision cutting: The passage of 29 mm corresponds exactly to the venturi of the flange, avoiding the "steps" that break the speed of the gaseous vein.
Adjustment of pulse holes: This seal has the exact holes to allow the depression to be passed to the operation of the carburetor's gas pump.
Thermal resistance: Made in a hydrocarbon-resistant composite material and radiant heat from the engine to prevent deformation.
Anti-air intake: Its flexible structure compensates for the slight flat imperfections between the carb and the valve box.

? Michel's trick

"It's a classic: the guy cleans his carbu, goes back the old dry seal, and Bim ... the engine no longer holds slow motion or remains accelerated alone! My advice: The carbu gasket is single use. Once crushed by the tightening, it loses its sealing properties. Other Little Pro Trick: Check the montage ! If you go up the joint upside down and get the small pulse hole, the gasoline will never reach the carb and you will shoot the launcher or starter for nothing. "

? Mounting & Maintenance Guide

Cleaning: Before laying, make sure both surfaces (carburetor and flange) are perfectly clean. A remaining old seal is the guarantee of a leak.
Tightening: Tighten the two carburettor screws uniformly. Excessive tightening of one side can veil the carburetor base.
Compatibility: Ideal for Iame X30 engines (Senior, Junior, Master) and KA100 equipped with the modern admission flange.

✅ Technical characteristics

Inner diameter: 29 mm
Engine compatibility: Iame X30 / KA100 (2018 and upper years)
Carburetor compatibility: Tillotson HW-27A and similar models.
Origin: Certified room compliant with IAME standards.

Note Magickart: This seal is the indispensable ally of your Iame airbox 2018. A clean mounting is the assurance of a carbu tuning that does not move during the sleeve!
