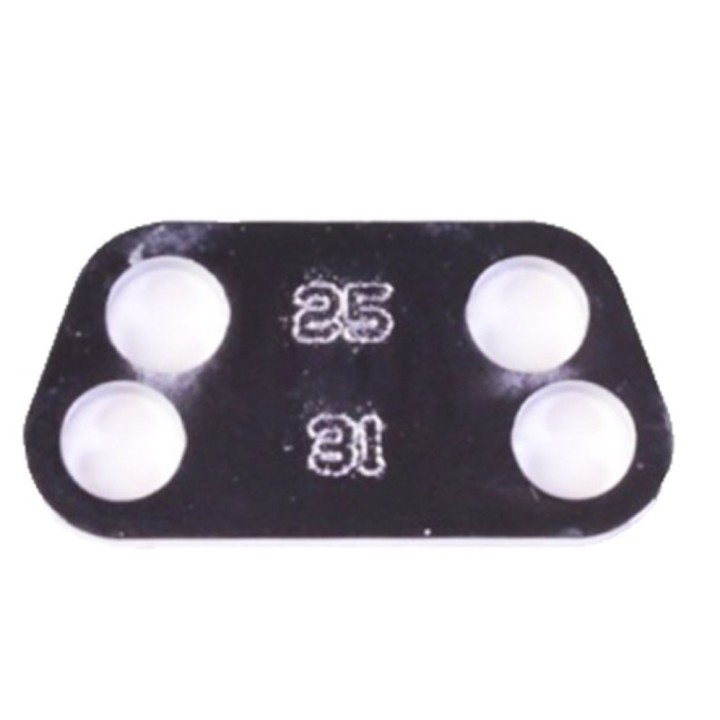

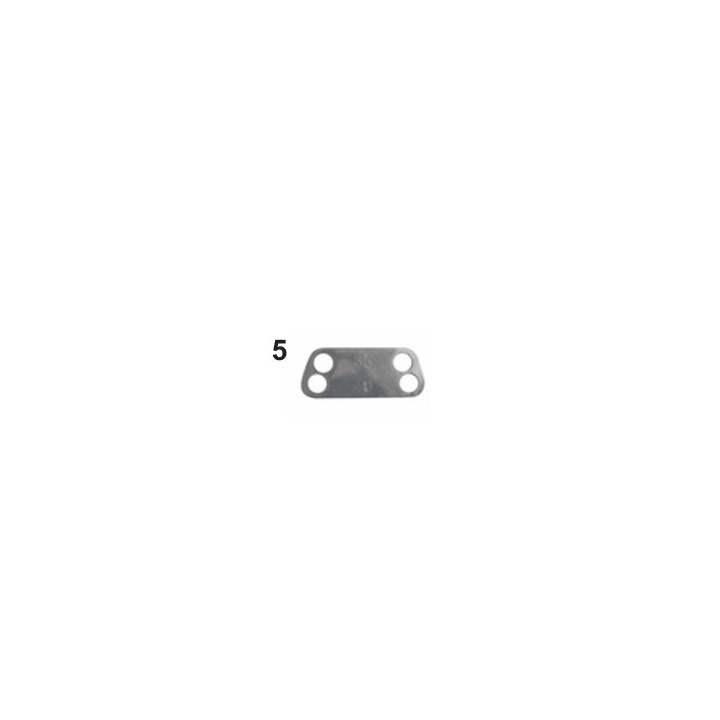

Directional column plate R 2.0 R25-31 CRG

Summary: Standard "Mini" CRG

The plaque R 25-31 is specifically dimensioned for short wheelbase chassis. It defines the demultiplication ratio between the steering wheel and the wheels for the minimal and cadet categories.

• Geometry R 25-31: The numbers indicate the distance positions (25 mm and 31 mm) of the mounting holes. This configuration offers a shorter lever arm than on adult models, avoiding too violent direction or too heavy for a child.

• Adjustment of the Ackermann:

  • 25 mm holes: Direction more direct, ideal for winding circuits.

  • Holes at 31 mm: Steering more stable and progressive, recommended for large curves or beginners.

- Technical specifications

- Mounting Tuto: Precision and Sweetness

1. Post-collision verification: Mini column plates are tiered at the end of frequent peloton contacts. A slight folding of the plate (invisible to the naked eye) can distort the parallelism of several millimeters.

2. Tightening the ball joints: Always use new Nylstop nuts and safety washers. In mini, the 60cc engine vibrations can loosen the fasteners if they are not perfectly locked.

3. Freedom of steering: Make sure that thoroughly, the steering ball does not come in mechanical abutment against the angle of the plate. Use beveled spacers if necessary.

4. Alignment: Check that the plate is perfectly centered when your steering wheel is straight.

? Michel's trick

"On mini chassis, the plate setting is often overlooked. The trick: If the young pilot complains that the Kart 'jumps' or 'jump' from the front forward input, try to pass the rods on the widest holes (31 mm). My Pro Council: This calms the direction and allows the chassis to work more flat. This is often the winning setting to restore confidence to a child who starts competing. "

❓ FAQ SEO (Frequently Asked Questions)

Q: Can I mount a R 35-40 plate on a mini chassis?

A: No. The adult plate (35-40) is too wide. It would make the direction extremely hard for a child and the robbering geometry (Ackermann) would be totally distorted from the short wheelbase of the mini.

Q: How do I know if my plate is twisted?

A: Place a flat rule on the plate. It must be perfectly plan. If you observe a light day under the rule or if the two fixing holes do not seem more horizontally aligned, the column must be replaced.

Q: Is the plate sold separately?

A: No, at CRGThe plate is an integral part of the column (welded). If the plate is damaged, it is the entire R 2.0 column that must be changed to ensure security.
