Front fairing pin CRG

Summary: the small room that secures all your kart

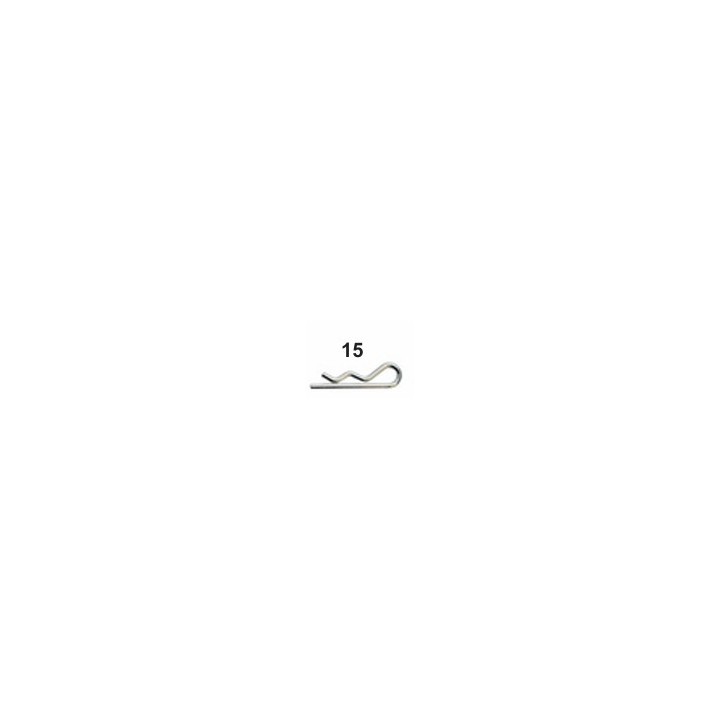

You hold here the landmark 15 : The pin clips (or R-clip). It's the centerpiece of passive security on your CRG. Although it is tiny, it has a critical mission: keep the chain (or fairing) in place by locking on the pivot (marker 14).

It's a room "Genuine Parts" made of elastic high limit steel. Unlike hardware pins, it is designed to maintain its "spring effect" after dozens of montages / dismounts.

- Why choose the pin CRG Genuine Parts ?

1. Hardness of steel (spring steel): She does not deform. A low-end pin quickly loses its tension, departs, and ends up falling on the track.

2. Versatility: It is standardized by CRG to be used indifferently on the front / lateral fairings (for a quick disassembly in case of shock) and on the kZ String Carrier.

3. Ease of use: Design CRG allows easy insertion and manual extraction, even with mechanical gloves, without the need for tools.

? Michel's trick

"Do not underestimate this small room. Losing a string pin, it's the surrender insured in the open session. My Pro Council: Do not reuse a pin that has been too excluded or whose branches are no longer touching. The trick: Always have a pocket of 10 pins in your toolbox. If you feel that a pin requires less effort to fit another, change it preventively. This is a few cents insurance that prevents you with major technical problems. "

- User's Guide

• Positioning: Insert the right branch into the pivot drilling (marker 14), then pivot the corrugated part for it to come "clipping" the pivot body.

• Safety: Check that the pin is softened to the stop loop.

• Interview: No particular maintenance, but if it starts rusting or losing its shape, throw it away without hesitation.

- Technical specifications

❓ FAQ SEO (Frequently Asked Questions)

Q: Is it the same pin for the chain and for the kart nose ?

A: Yes, it's the great strength of the design CRG. The system is standardized to simplify your parts stock in the toolbox.

Q: Can I use pins purchased in DIY store ?

R: Avoid. Steel used for pins CRG is specific to support karting vibrations. Store pins "adverse" far too fast with heat and vibration.

✅ The "complete kit" Magickart

You have now identified all the components to mount your KZ chain with fast disassembly:

1. The middle nut (Rep. 6)

2. The milled washer (Rep. 5)

3. Carter's pivot (Rep. 14)

4. The pin clips (Rep. 15)
