AIM MYCHRON6 meter with Water T ° sensor

Product presentation

The AIM Mychron6 counter is a revolutionary stopwatch and data logger, designed by AIM to meet the needs of the most demanding kart drivers. This tool combines the latest technologies to offer accuracy, performance, connectivity and optimize your circuit sessions. Equipped with a water temperature sensor, it allows to monitor the critical settings of your engine in real time.

Technical characteristics

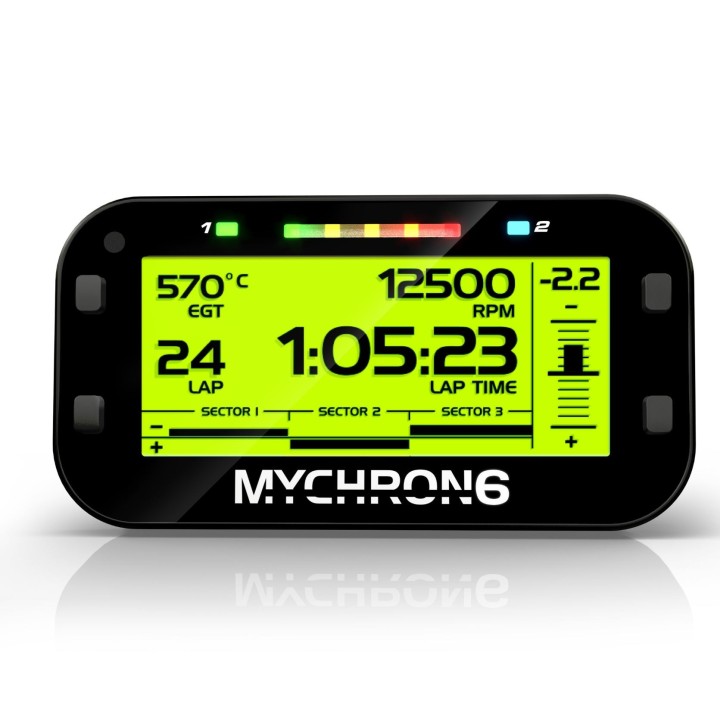

• High performance display : High resolution screen of 320 x 136 pixels with 8 configurable backlight colors, guaranteeing perfect readability, even in full sun. Built-in brightness sensor to automatically adjust the lighting.

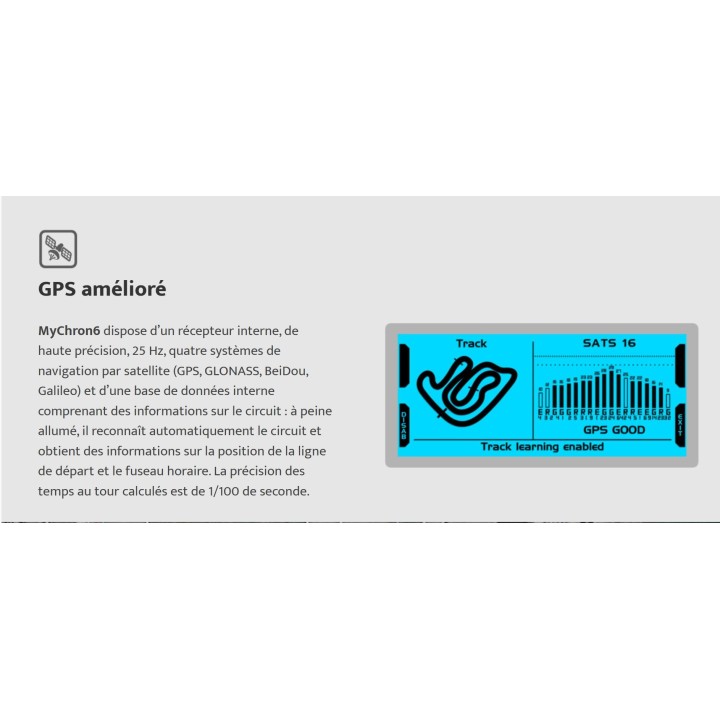

• Unparalleled GPS precision : Built-in GPS running at 25 Hz, depending on your turn and your trajectories with exceptional precision.
• Customization and smart alerts : 5 programmable RGB LEDs for shift indicators and 2 configurable alarm LEDs to report key parameters such as engine temperature.
• Modern load and connectivity : USB Type-C port for quick recharge and easy data transfer. Built-in Wi-Fi connectivity for a transfer and configuration of wireless data.
• Robustness and reliability : IP67 certified, offering protection against water and dust. Long battery with quick recharge via USB Type-C.
• Extended compatibility : Compatible with AIM extensions such as SmartCam cameras or additional sensors for a full performance analysis.
• Dimensions : 150 x 79 x 36.6 mm.
• Weight (kg) : 370 g.
• Memory : 4 GB.
• LED resolution and adjustable screen.

Show

• Graphic
  • Display resolution: 320 x 136 pixels

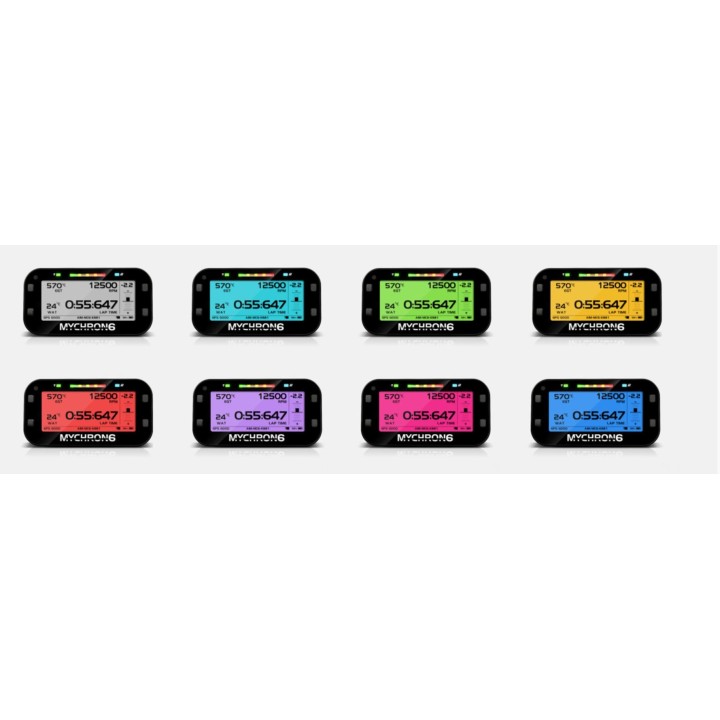

  • Backlight: 8 configurable RGB colors
  • Speed Change LEDs / Alarm LED: 5 + 2 LED configurable RGB

Integrated DB CHECK

• Yes

Wi-Fi connection

• Yes

Bluetooth connection

• Yes
• Option:
• Bluetooth connectivity
• Experience transparent connectivity with Mychron's advanced Bluetooth module.
• If you want to measure your heart rate during the race, simply connect the heart rate monitor via Bluetooth to your Mychron6 and view the data on the screen or download them after the race.
• Compatible with the most common heart rate monitor on the market.

GPS

• 25 Hz

External power supply

• 9 ÷ 15 V

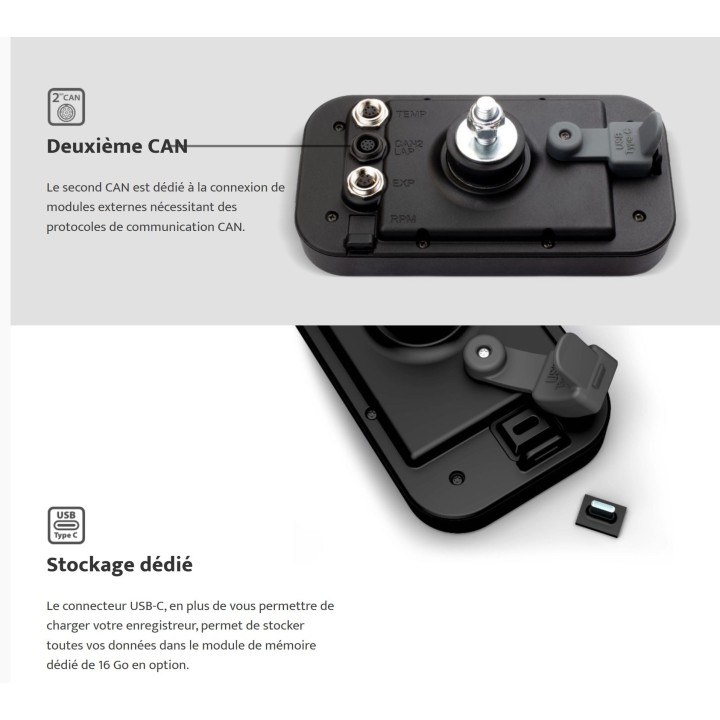

CAN Connections

• 2

Connectors

• 1 Binder 712 Fem 3-pin connector
• 1 BINDER 712 FEM 8-pin connector
• 1 Binder 712 fem 5-pin connector
• 1 Binder 712 fem 7-pin connector
• 1 BINDER 712 FEM 8-pin connector
• 1 Binder 712 fem 5-pin connector

USB connection

• For data download, mass storage support and battery charging

Temperature inputs

• 1
• 2

Inertial power station

• 6 axes, frequency 50 Hz

Digital inputs

• Optical turn signal
• Magnetic tower signal

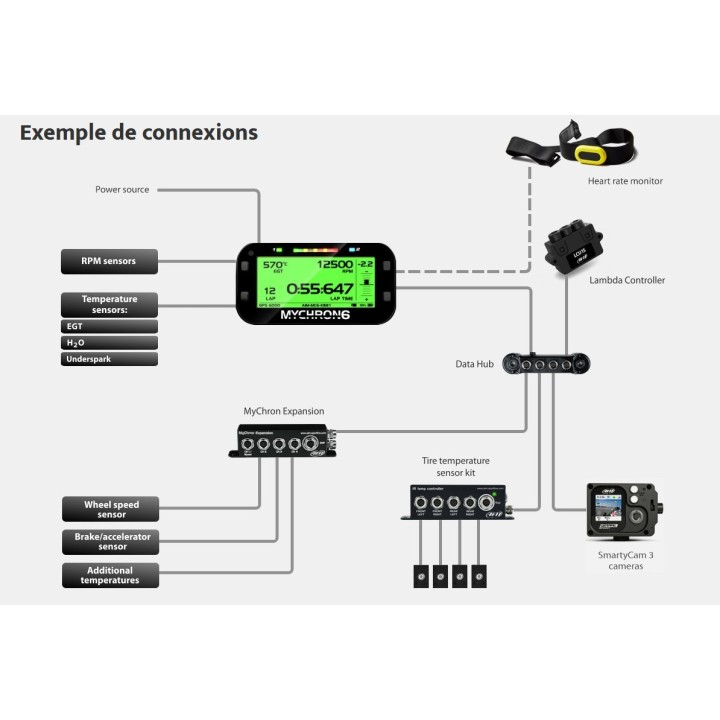

Outer modules

• MYCHRON EXTENSION
• IR temperature controller
• Smartycam 3 Series
• Lcu1s

Memory

• 4 GB

Internal battery type

• Rechargeable lithium

Battery life

• 20 hours about

Body

• PA6 GS30%

Size

• 152.0 x 81.0 x 37 millimeters

Weight (kg)

• 370 grams

Raincoat

• IP67 protection index
• Dedicated storage:
• The USB-C connector, in addition to allowing yourself to load your recorder, lets you store all your data in the optional 16GB dedicated memory module

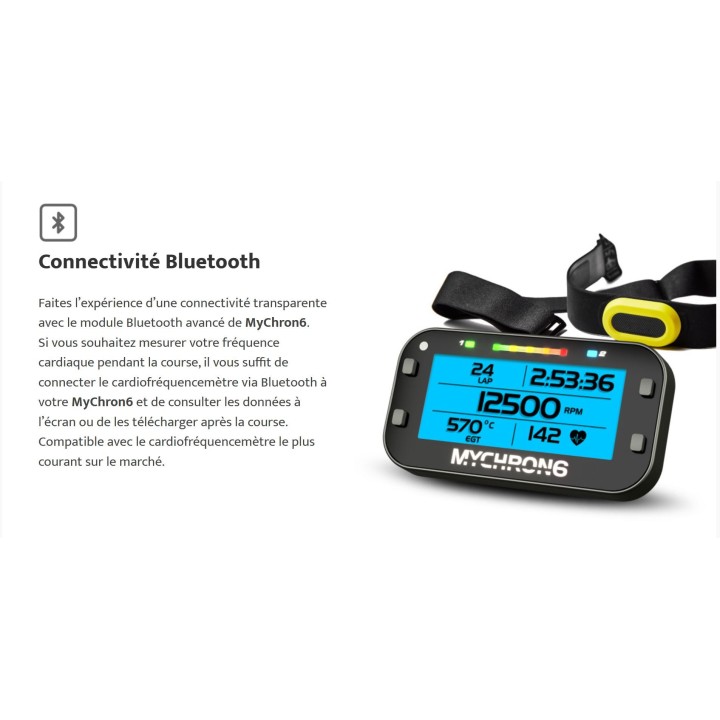

Bluetooth connectivity:

Experience transparent connectivity with Mychron's advanced Bluetooth module.

If you want to measure your heart rate during the race, simply connect the heart rate monitor via Bluetooth to your Mychron6 and view the data on the screen or download them after the race.

Compatible with the most common heart rate monitor on the market.

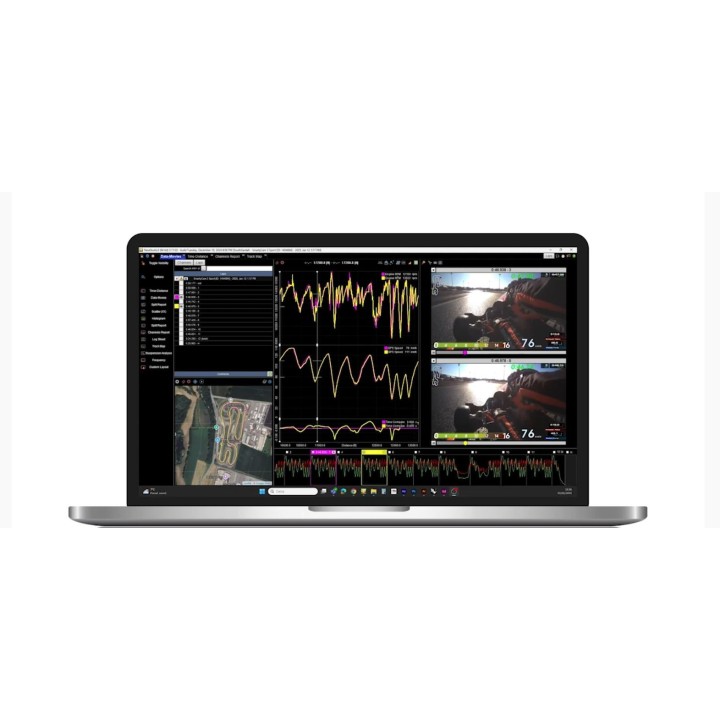

Software : Racestudio 3 will soon be available on your smartphone to manage the following features

On your Mychron6 / 2T:

Data analysis

Visualization of online data

Calibration of sensors

Circuit Management

Firmware update

Data download and storage in the cloud

The brand new multiplatform application (Apple iOS® and Google Android®) is designed to have the main Features of Racestudio 3

At your fingertips, allowing you, thanks to Wi-Fi, managing your AIM devices, monitor all channels you want, allowing you to analyze the saved values during track sessions through maps and detailed charts.

Benefits

• Advanced technology : Combines the latest technologies to provide precision, performance and connectivity.
• Optimized display : High resolution screen with configurable backlight for perfect readability.
• GPS accuracy : Tracking Time and Trajectories with exceptional accuracy.
• Custom alerts : Programmable LEDs for Speed Indicators and Configurable Alerts for real-time monitoring.
• Modern connectivity : USB Type-C and Wi-Fi port integrated for easy transfer and configuration.
• Robustness and durability : IP67 certified for water protection and dust, with a long-lasting battery.
• Extended compatibility : Compatible with various AIM extensions for a complete performance analysis.

Additional explanations

The AIM MyCHron6 counter is a revolutionary tool for demanding karting drivers. With a water temperature sensor, it allows to monitor the critical settings of your engine in real time. High performance display, unparalleled GPS accuracy, smart alerts and modern connectivity make it an ideal choice for optimizing your circuit sessions. Designed to withstand the most demanding conditions, the Mychron6 is IP67 certified and offers a long-term battery. Compatible with various AIM extensions, it allows a complete analysis of your performance.
