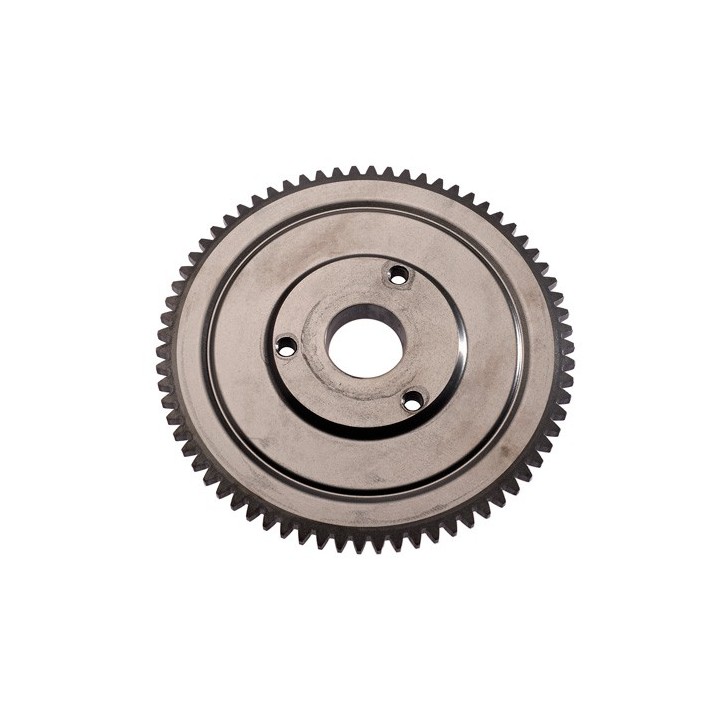

• 70 teeth clutch wreath: the reference Rotax Max

  The Crown of 70 teeth is the transmission standard for motorizations Rotax 125 max. It makes the direct link between the engagement of your clutch and the chain, supporting the entire engine torque from the turn output.

  Why choose this crown?

  • Clarification accuracy: Perfect machining of teeth to limit chain jumps and reduce friction noise.

  • Resistance to shocks: Material treated not to deform under the impact of brutal gases.

  • Versatility: Offers a balanced transmission report, perfect for the majority of French karting circuits.

  Compatibility:

  • Rotax 125 Max (Senior, Master, Junior)

  • Rotax Mini & Micro Max

  ---

  ? Michel's Tip (Magickart):

  "A 70-teeth crown in good condition, it's a chain that lasts twice as long!

  My Pro Council: Never climb a new crown with a used chain. The 'elongated' channel will "eat" the teeth of your new crown in just two sessions.

  The secret: Check the alignment of your rear sprocket. If the crown wears more on a flank of the teeth is that your engine is not perfectly right on its support. "

  ---

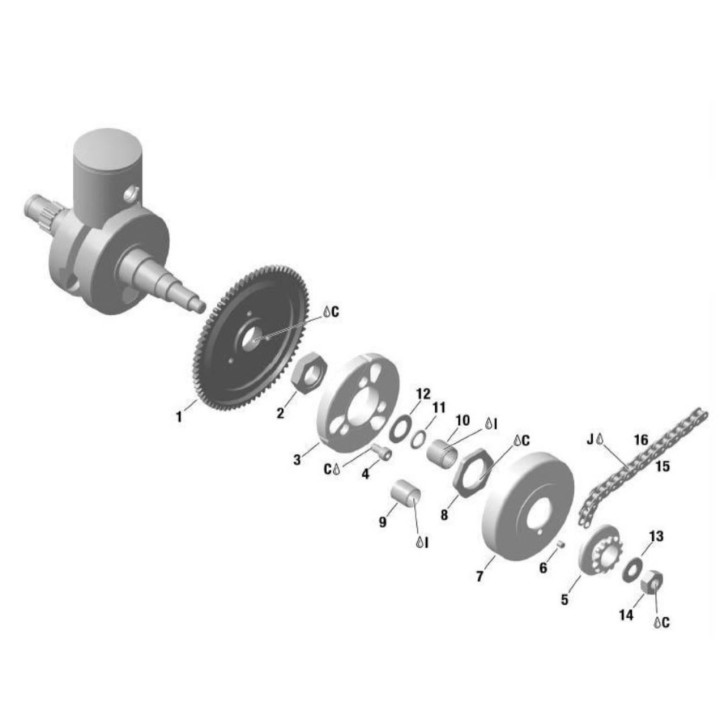

  ?️ Tuto: How to replace your clutch wreath?

  Crown change is a simple maintenance operation but requesting rigor:

  1. Disassembly of the bell: Remove the crankshaft nut and pull out the bell / crown assembly.

  2. Extraction of the crown: Unscrew the fixing screws (usually 3 or 6 screws depending on the bell model).

  3. Cleaning: Carefully clean the scope of the clutch bell to remove grease or filth residues.

  4. Mounting: Position the new 70-tooth crown on the bell. Apply a drop of Low net brake on the fixing screws.

  5. Tightening: Tighten the star screws to ensure a perfect flatness.

  6. Verification: Reassemble the set on the engine and check that the crown turns without "veil" before putting the chain back.

  ---

  We are good for the crown of 70? Can we go on another transmission piece? Compatible with the majority of karting chassis equipped with motor Rotax Max

TIPS OF USE

• Check the status of the rear sprocket and the chain When replacing the crown to ensure uniform wear and optimum transmission.

• Regularly check the tension of the chain and the condition of the crown's teeth to ensure the safety and performance of the kart.

• If you are not familiar with the assembly of transmission components, it is recommended to entrust this operation to a karting professional, thus guaranteeing a correct and secure assembly.
