TMKART clutch stop (7)

Name: TMKART clutch stop (7)
Brand: Tm racing
SKU: 18TM26001
Price: 8.96 EUR
Availability: BackOrder

Tm racing

€8.96

Tax included

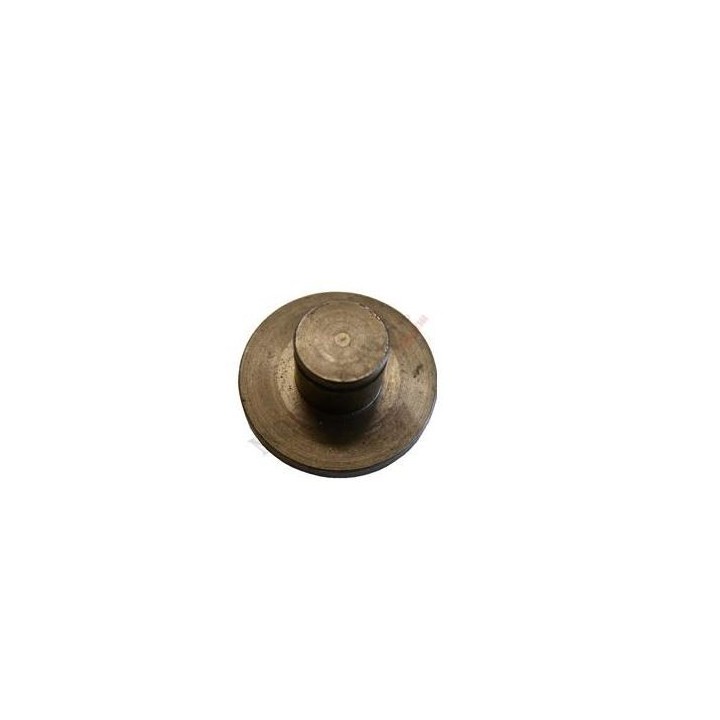

Guarantee an instantaneous transmission of the disengagement effort thanks to the Push Mushroom / Stop Stopper TM KART. Axial room directly located at the center of the transmission of your gearbox kart 125cc, this fungus receives the support of the lapping rod to remove the presser tray and release the disks.

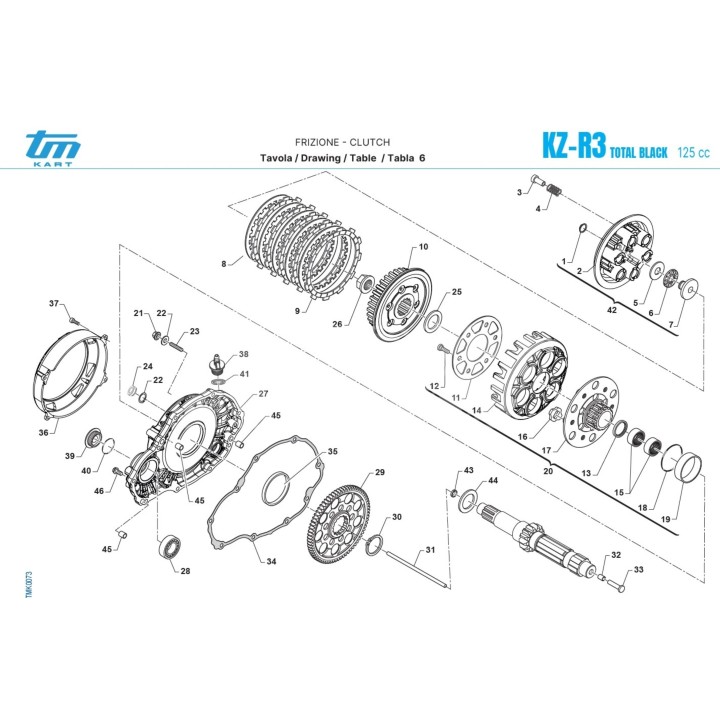

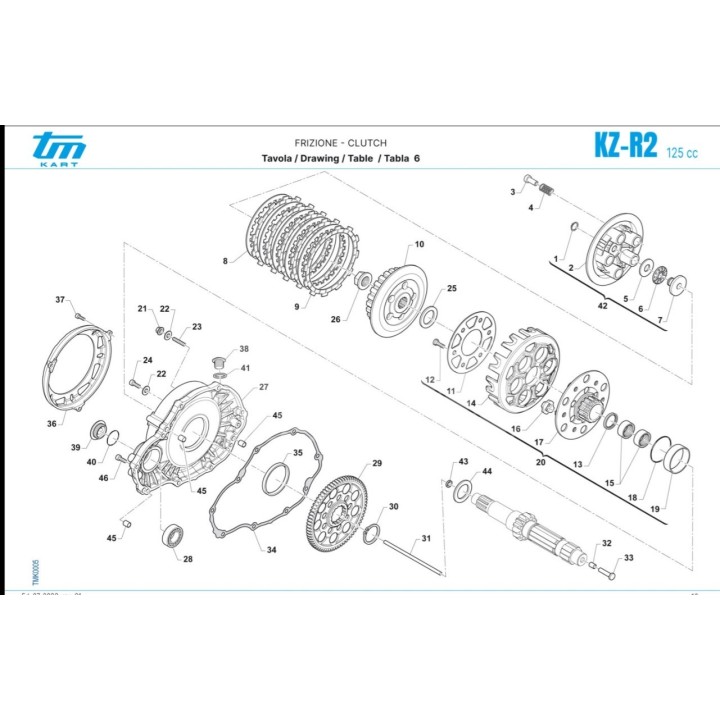

On the Official Exploded View (Tavola 6 - Motor Clutch KZ-R3 Total Black), this stop wears the Landmark n ° 7. Made of tM kart treated steel, its support face is machined with micrometric precision to fit perfectly on the needle radial cage (marker 6). It cash repeated thrusts without scoring or deforming, ensuring a constant disengage stroke and a millime control of the skating point initially on all blocks TM KZ10C, KZ-R1, KZ-R2 and KZ-R3.

Specification	Technical details
Product type	Push mushroom / mobile clutch stop
Mark	Tm kart (Original TM Racing Genuine Parts)
Exploded view	Exhibit N ° 7 (Tavola 6 - Frizione / Clutch)
Location	In the center of the pressure plate (2), in contact with the thrust rod
Function	Transmits the axial force of the rod to the presser tray via the needle cage
Motor compatibility	Tm kart : KZ10C, KZ-R1, KZ-R2, Kz-r3 (Total Black & Standard)
Material	Cemented steel and rectified high resistance to thermal shocks

-Complete product Clutch stop / original pushing mushroom TM KART - Landmark n ° 7 Exploded view - KZ engines

Guarantee an instantaneous transmission of the disengagement effort thanks to the push Mushroom / Stop Stopper TM KART. Axial room directly located at the center of the transmission of your gearbox kart 125cc, this fungus receives the support of the lapping rod to remove the presser tray and release the disks.

On the official Exploded View (Tavola 6 - Motor Clutch KZ-R3 Total Black), this stop wears the landmark n ° 7. Made of tM kart treated steel, its support face is machined with micrometric precision to fit perfectly on the needle radial cage (marker 6). It cash repeated thrusts without scoring or deforming, ensuring a constant disengage stroke and a millime control of the skating point initially on all blocks TM KZ10C, KZ-R1, KZ-R2 and KZ-R3.

?? Tip in Michel (the corner of the expert)

* "Hi the kings of the mechanics! The push mushroom n ° 7, it is he who takes direct the thrust of your debaring rod at the bottom of the pressure plate. If he has the game or if his bearing range is marked, you will lose the accuracy at the lever. Clutch.

My stand trick for the control of the push fungus: checking the support face and the test of the rod !

When you review the clutch, remove the circlips (marker 1) and remove the fungus (marker 7). Carefully inspect the flat face that comes into contact with the needle cage (marker 6). If it has a circle digging, scratches or warm-up traces (blue / brunette color), replace it without hesitation! A damaged range destroys the new needle cage in a few sessions.

Also check the rear bowl of the fungus: the end of the thrust rod must come to bed perfectly. A small graphical or high temperature fat movie in the reassembly bowl will avoid any wear by friction between the stem and the stop! "*

? Installation Guide (Location # 7): Step by Step

1.AccIn the center of the plateau:2 min.

Disassemble the clutch housing and remove the holding circlips (marker 1) located in the center of the pressure plate (marker 2).

2.Extraction and cleaning:2 min.

Extract the old push fungus (marker 7), the radial cage (marker 6) and the support washer (marker 5). Clean the central housing on the brake cleaner.

3.Installation new stop:2 min.

Follow the Tip in Michel: Remove a fat tip on the bottom of the new mushroom (marker 7) and lubricate its support range. Replace the washer (5), the needle cage (6) and the fungus (7).

4.Verrouillage final:1 min.

Replace a new circlips A10x1 (marker 1) with the adapted clamp to lock the stop subset. Your clutch order is optimal precision !

❓ FAQ SEO (Frequently Asked Questions)

Q: Which component of the exploded view matches this stop # 7 ? A: On the TM Kart Technical Diagram (Tavola 6 / Frizione), the mark no. 7 refers to the clutch thrust / stop mushroom that comes to place above the needle radial cage (N ° 6).

Q: Must replace the entire stop system (marks 5, 6 and 7) at the same time ? A: It's strongly recommended. The fungus (7), the needle cage (6) and the wedge washer (5) work directly in contact with each other. Replacing the complete subset guarantees perfectly flat scope and extends the life of the parts.

Q: Is this clutch stop the same on the KZ10, KZ-R1, KZ-R2 and KZ-R3 engines ? A: Yes, the dimension of the central thrust fungus and the diameter of the housing of the presser tray are identical over the entire 125cc motor lines with TM Kart gearbox.
