Black Cylinder Cylinder (8 mm 12 mm) TMKART

- Complete description of the original TM KART CH12 black nut M8 nut - KZ-R2 / KZ-R3 cylinder - Mark # 20

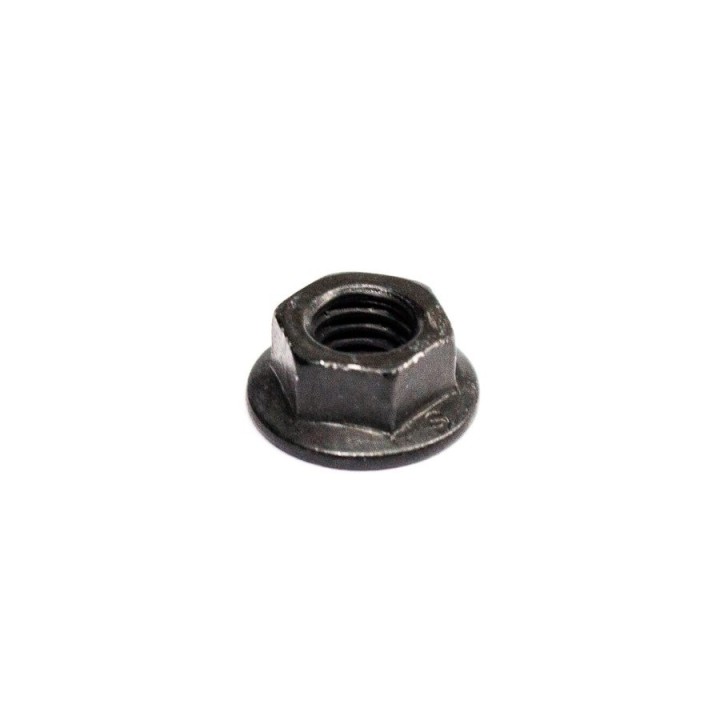

Keep the aesthetics factory and the rigidity of your high-engine thanks to theOriginal TM KART CH12 Nut Black M8. Specially treated with a high strength black finish (Total), this reinforced nut ensures the locking of your cylinder on the motor housings while bringing a neat aesthetic touch on the blocks TM KZ-R2 and KZ-R3.

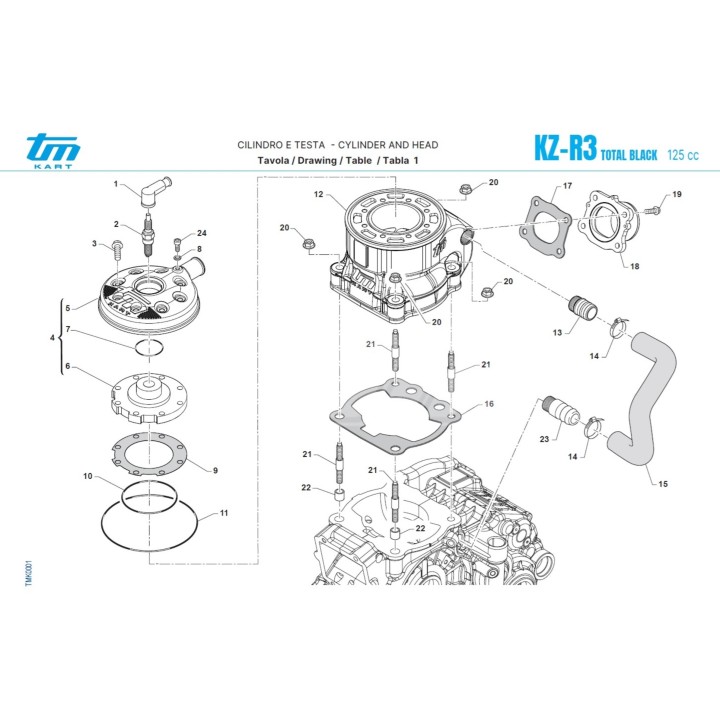

On the official Exploded View (Tavola 1 - Cylinder and Engine Head KZ-R3 / R2), this nut carries the landmark n ° 20. Its design with enlarged monobloc base (flange) is used to distribute the clamping load in a perfectly uniform manner on the range of the cylinder (marker 12), avoiding any risk of deformation of the nicasil shirt during the application of the torque.. Footprint CH12 (12 mm key) offers an excellent grip for your torque tools during revision operations.

- The trick in Michel (the corner of the expert)

* "Hi the mechanos! The black nut n ° 20 on the blocks R2 and R3, that's what gives this superb 'total black' finish of factory while blocking the cylinder to more than 15,000 rpm. The black treatment is sturdy, but like all the Competition parts, he asks for the right tool to stay clean.

My stand trick to preserve black treatment and guarantee perfect tightening: the 12 mm sleeve 6 sides and the Dyna key !

Do not use a low-ended 12-pin 12-pin key key to tighten these black nuts M8. Privilege a sOUNGE 6 PANS OF 12 MM QUALITY which takes firmly on the flats without marking the anodization / black treatment.

As for the classic version, tighten your 4 base nuts imperatively cross (in x) and in several progressive passes with your torque wrench until you reach the TM Kart factory value (about 22 to 24 nm). A tightening of the couple is a perfectly sealed cylinder and a black look that remains impeccable! "*

-Ind placement (location n ° 20): step by step

- SEO FAQ (Frequently Asked Questions)

Q: Is this black nut 20 N ° 20 is it technically identical to the Steel Color version ?

A: Yes, geometry (M8 thread, 12 mm CH12 imprint, wide base) and the mechanical strength are strictly identical. Only surface treatment Black (Total Black) differs to match the finish of TM KZ-R2 and KZ-R3 engines factory.

Q: Which component of the kz-R3 exploded view corresponds to this nut ?

A: On the TM Kart Technical Diagram (Tavola 1 / Cylinder and Head), the Landmark no. 20 refers to the CH12 M8 nuts for attaching the cylinder (# 12) to the bast-motor studs (N ° 21).

Q: Is this nut sold to the unit ?

A: Yes, this original TM Kart nut is sold to the unit (think about ordering 4 if you replace all the clamping nuts of your cylinder).
