Tillotson RK-6HW Repair Pouch Full - Iame X30 (HW27A) AP.2018 & KA100 (HW33)

Carburetor Pouch Tillotson RK-6HW - Iame X30 & KA100

The Repair pocket Tillotson RK-6HW Complete is intended for the Revision and maintenance of tillotson membrane carburetors mounted on the engines IME X30 (Carburetor HW27A from 2018) and Iame KA100 (Carburetor HW33).

This pouch restores the proper functioning of the carburetor by replacing all the components subjected to wear, thus guaranteeing a Stable and powerful fuel feed.

Engine compatibility and carburetor

• IME X30

  • Carburetor: Tillotson HW27A

  • Versions: from 2018

• Iame KA100

  • Carburetor: Tillotson HW33

Product according to Tillotson specifications and adapted to the requirements of the competition karting.

RK-6HW pouch content

The pocket includes all the elements necessary for a complete revision of the carburetor:

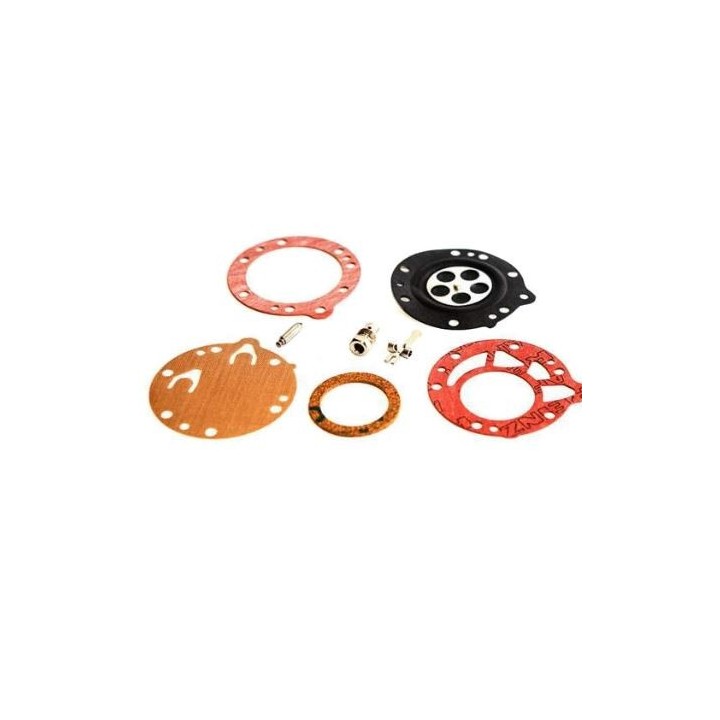

• Pump membrane

• Regulation membrane

• Paper joints

• Seals

• Washers

• Specific hardware

• Plates and internal components needed to reassemble

Each element is designed to ensure a Perfect sealing and one Accurate operation of the fuel circuit.

Function and importance of the carburetor revision

Tillotson membrane carburetor runs by depression. With time and use:

• The membranes are rigidifying

• The joints lose their sealing

• Fuel regulation becomes irregular

Regular replacement of components using the pocket Rk-6hw Allows you to:

• Find a Constant fuel supply

• Improve the Response to acceleration

• Stabilize slow motion

• Preserve motor performance

• Reduce the risk of incorrect mixture

Quality Tillotson

• Original tillotson components

• Materials resistant to modern fuels

• Tolerances in accordance with competition requirements

• Reliability recognized in international karting

Mounting recommendations

The revision of a carburetor requires:

• A clean environment

• Strict compliance with editing order

• Precise adjustment after winding

He is strongly recommended to entrust this operation to a karting professional or an experienced user mastering Tillotson carburetors.

Key benefits

• Complete repair cover

• X30 Compatibility (after 2018) and KA100

• Carburetor performance restoration

• Improvement of engine reliability

• Essential during engine revisions

MagickArt Council

To ensure constant performance and avoid feeding problems, it is advisable to Replace the carburetor membranes regularly, in particular in use competition or after long periods of inactivity.

(X30 - ka100 - membrane carburetors)

1. Recommended revision frequency

• All the 5 to 8 hours in competition

• Every Engine repair

• After long period of inactivity

• In case of:

  • unstable idle

  • holes with acceleration

  • Difficulty adjustment

  • Poor or irregular engine

2. Disassembly - Preparation

Before any intervention:

• Work in a clean environment

• Use Adapted tools

• Clean the outside of the carburetor

• Locate the assembly order of the pieces

3. Elements to be replaced systematically

(via a tillotson repair pouch adapted, ex. RK-6HW)

• Pump membrane

• Regulation membrane

• Paper joints

• Seals

• Rudels and internal seals provided in the pocket

⚠️ The membranes are wear parts, even if they appear visually correct.

4. Controls to be made during the revision

Fuel circuit

• Status of membranes (flexibility, deformation)

• Sealing of joints

• Absence of impurities or deposits

Needlight and lever regulation

• Check the wear of the needle

• Control the spring

• Check the height and free movement of the lever

Carburettor

• Absence of scratches or deformations

• Cleaning ducts (without enlarged the passages)

• No dried fuel residue

5. Cleaning (if necessary)

• Soft cleaning with suitable carburetor product

• Blow the ducts with compressed air

• Never use metal tools in passages

• Full drying before reassembly

6. Reassembly

• Respect the exact order of the pieces

• Position correctly:

  • membranes

  • joints

  • plates

• Tighten the screws progressive and uniform

• Do not force to prevent deformation

7. Settings after reassembly

• Distribute basic buildings manufacturer

• Check:

  • slow motion

  • diet

  • recovery

• Adjust according to:

  • outdoor temperature

  • track

  • Engine category

8. Final checks

• Absence of fuel leakage

• Stability of idling

• Response franchy engine

• Regular operation over the entire diet range

Important recommendation

The revision of a Tillotson carburetor directly influences:

• the Engine reliability

• the performance

• the Longevity of piston and cylinder

? it is strongly recommended to entrust this operation to a karting professional or an experienced user mastering membrane carburetors.

MagickArt Council

A properly revised carburetor guarantees a stable feeding, COherative settings and one more reliable engine. A simple hardened membrane can be enough to lose performance or cause a motor breakage.
