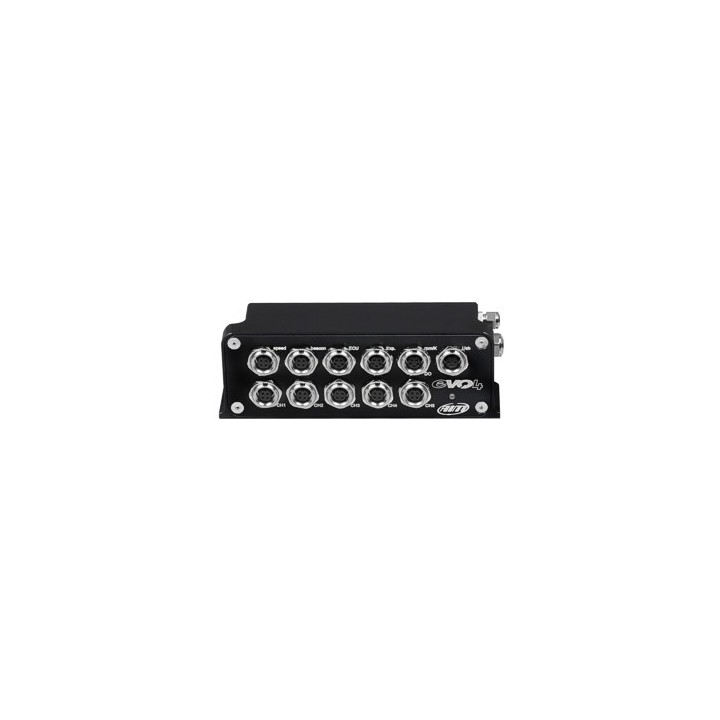

AUTO AIM EVO4 Data Acquisition

Name: AUTO AIM EVO4 Data Acquisition
Brand: Aim
SKU: 446

data acquisition without display

AIM's EVO4 data acquisition system:

Complete : with its 5 configurable inputs, its integrated GPS and a 3-axis accelerometer, EVO4 provides the pilot with all the key information to help with tuning and piloting. The EVO4 provides both information from the sensors and also from the engine control box as well as two wheel speed inputs.

Modular : A CAN output allows connection to all AIM products from the simple formula steering wheel display, from sensor extension boxes to the lambda sensor box.
File transfer to a PC is done using the Memorykey USB stick.

Compact : thanks to its small dimensions (105x40x33 mm) EVO4 is suitable for both cars and motorcycles.

Excellent value for money : considering its features, the EVO4 has a very competitive price.


	Computer interface (ECU) Thanks to the system ( Easy Connection Technology ) the EVO4 can very easily be connected to your engine control computer.

The EVO4 comes standard with Race Studio 2 software, the powerful tool for data analysis.

Technical characteristics

	5 configurable analog inputs

	2 speed inputs

	1 digital engine speed input

	1 internal 3-axis accelerometer

	Integrated GPS Module

	Chronos measurement (magnetic/optical sensor and GPS)

	CAN protocol for expansion modules

	ECU interface

	5 khz sampling rate

	USB cable for data download

	Memory: 8 Mb

	External power supply: 8-16 V
